Why do you need a Moisture and Density Analyzer?

Having a moisture-density analyzer helps you consistently check density and moisture levels across beans help you achieve more uniform roasts. If the moisture content varies, some beans may roast too quickly, while others may lag behind. This tool gives you precise control over your roast, ensuring every batch is perfect.

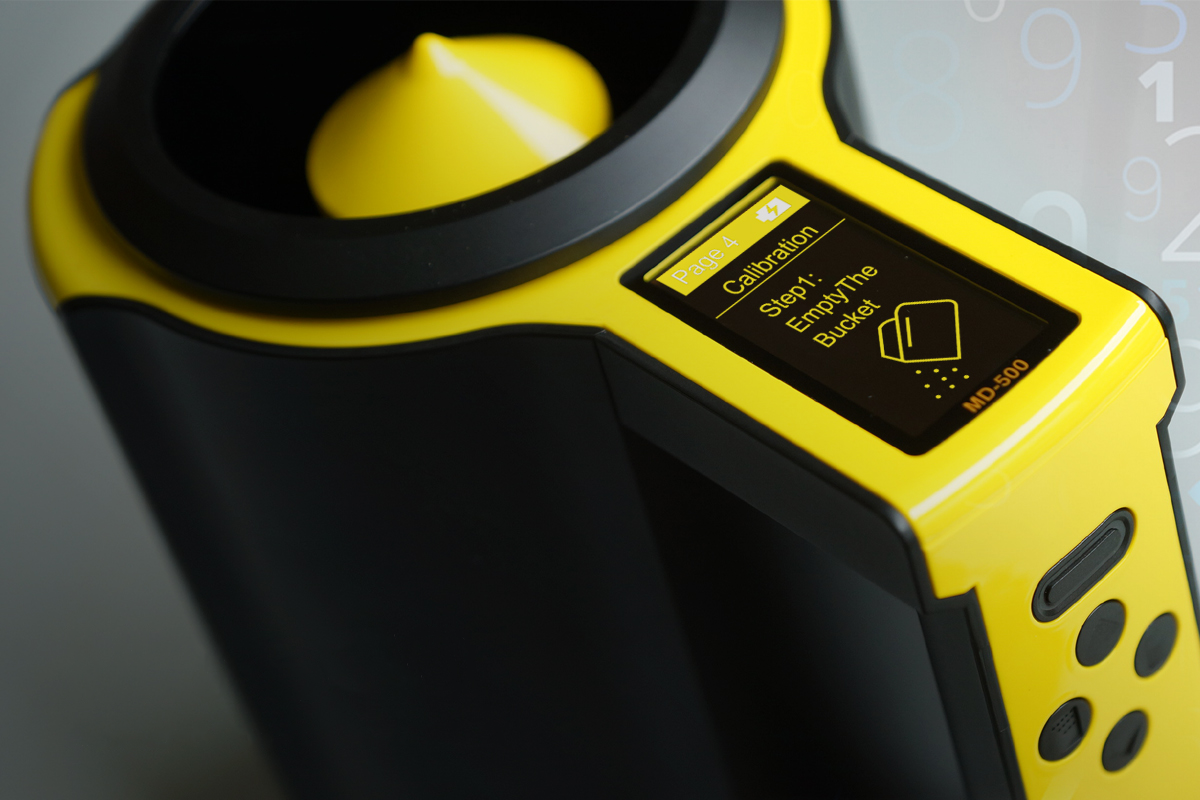

The MD-500 Moisture-Density Analyzer

The MD-500 portable Moisture-Density Analyzer is designed to measure the moisture and density level for Green/Parchment/Cherry/Roast coffee beans before start roasting. It is portable, user-friendly, accurate and easy to use. It provides you quick and accurate moisture and density results. The results are automatically stored in the MD-500 internal memory and can be easily re-checked on display or load the database into your computer.

Specifications and Package Contents

  • Specifications

    Accuracy± 0.5% for moisture content and 1.2g/L for density

    Repeatability 0.20% for moisture content

    Measurement Range 1 to 40% mc depends on bean types

    Operating environment 5 to 40 °C

    Dimensions (main unit) 212(L) * 150(W) * 202(H) mm

    Dimensions (funnel) 139(D) * 90(H) mm

    Weight (main unit) 1050 g or 2.3 lb

    Power supply -Power adapter: 110V/220V to 5V -3.7V/2300 mAh Lithium battery

    Charging time(0% to 100%) 6.5 hours

    Working hours 20 hours continuous working per full charge

    Sample cell 250ml Volume, 50 – 240g

    Data output to PC micro USB cable

  • Package Contents

    • MD-500main unit x 1

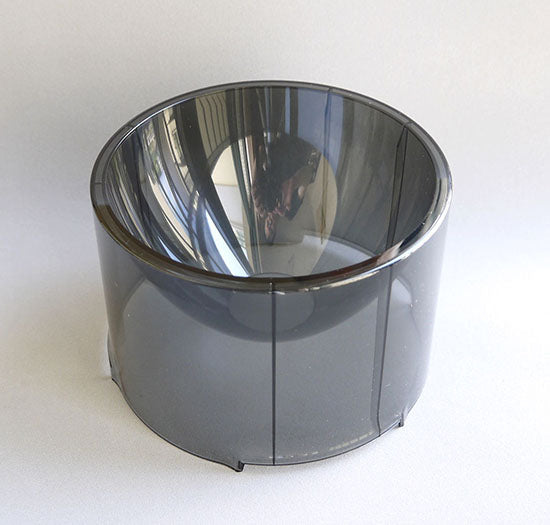

    • MD-500 hopper x 1

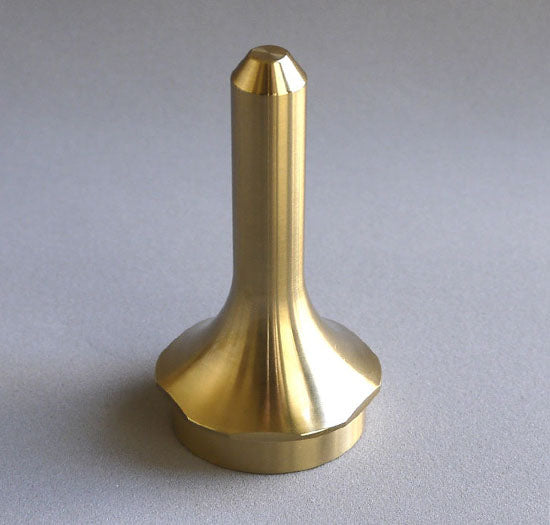

    • MD-500 hopper-plug(Weight) x 1

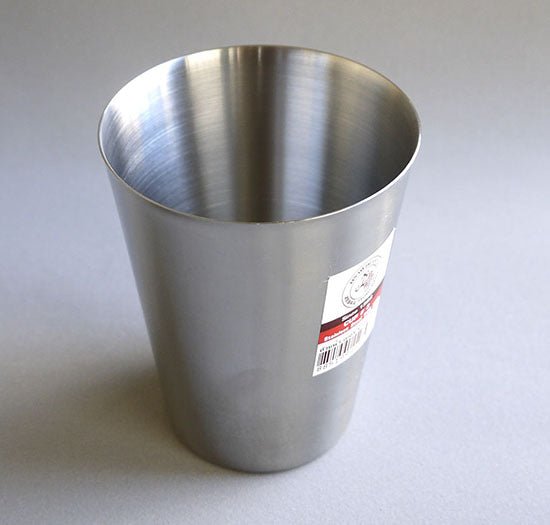

    • 250ml measuring beaker x 1

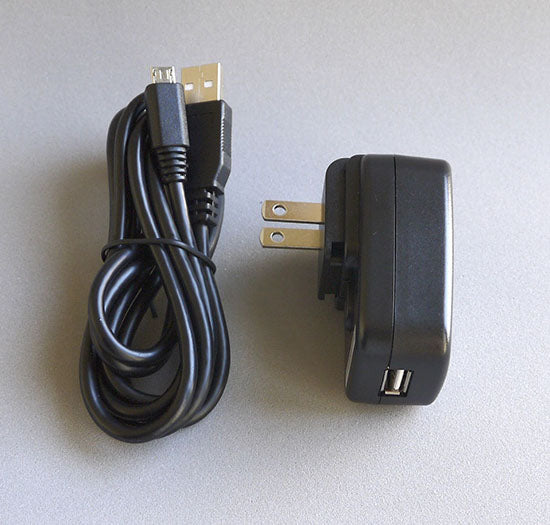

    • 5V Power Adapter x 1
    • micro USB Power cable x 1
    • Straightedge x 1

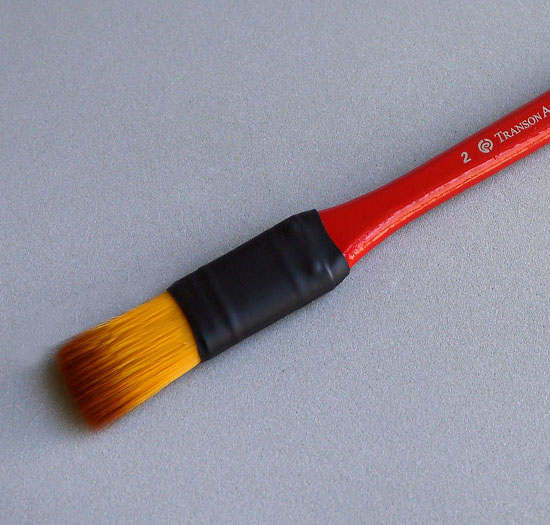

    • Brush x 1
    • User Manual with Limited Warranty Page x 1
    • Product packaging
